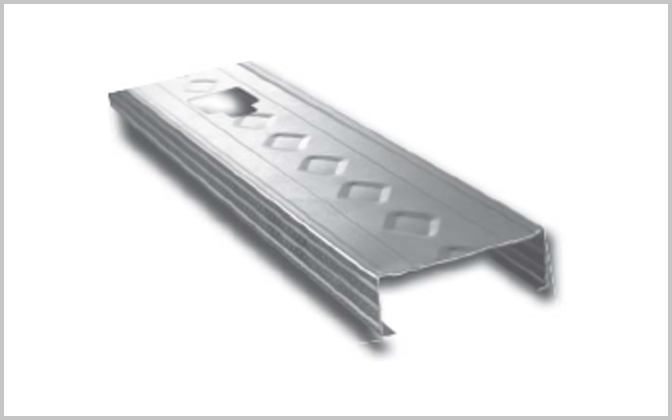

ProSTUD® Delivers Excellence to Construction

With high-strength steel combined with low-profile flange stiffening grooves and double offset web planking, our ProSTUD® increases strength and provides greater limiting heights for your projects. Constructed with diamond embossed webbing, our ProSTUD® gives your building the stiffness to stand strong, reducing flange fade and screw spinout during drywall installation. Our strong and lightweight stud and track cuts and handles easier than conventional flat steel studs. When you invest in quality steel with State Building Products, you know that you are getting only the best and strongest in the business.

Construction Advantages

  • High-strength steel combined with low-profile flange stiffening grooves and double offset web planking increases strength and provides greater limiting heights
  • Diamond embossed web creates stiffness, reducing flange fade and screw spinout during drywall installation
  • Strong, lightweight stud and track cuts and handles easier than conventional flat steel studs
  • Flange grooves provide sight line for drywall alignment and aid in positioning screws at drywall joints to maintain the 3/8″ edge requirement

Design Advantages

  • Designed to meet the additional strength requirements of today’s building codes: IBC 2003, 2006, and 2009, AISI NASPEC (S100), ICC-ES AC86 (2010)
  • UL Classified and listed in over 50 designs, including U419, V438, and chase wall assemblies
  • Exceptional sound performance in over 50 tested sound assemblies
  • Can contribute up to 7 LEED® Credits under LEED for New Construction and Major Renovations (LEED-NC Ver. 2.2 and 3.0)

Product Information

Web Widths:

  • 1-5/8″
  • 2-1/2″
  • 3-1/2″
  • 3-5/8″
  • 4″
  • 5-1/2″
  • 6″

Non-Standard Material Thicknesses:

  • ProSTUD® 30MIL 33ksi
  • ProSTUD® 33MIL 33ksi

Standard Material Thicknesses:

  • ProSTUD® 25 / 15mil (25ga EQ) 50ksi
  • ProSTUD® 20 / 18mil (20ga EQ) 70ksi

Return Lip:

  • Varies by stud size

Flange:

  • 1-1/4″

All material G40 EQ (CP 60 available as special order)
